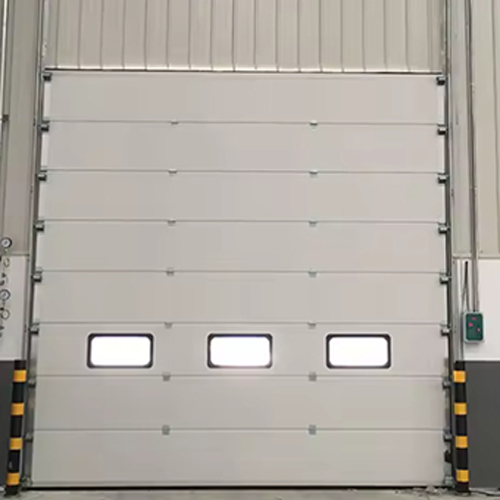

Industrial Sectional Overhead Door for Parcel Sorting Centers
An Industrial Sectional Overhead Door, also called an Industrial Lift-up Door or Warehouse Lift-up Door, is a critical solution for parcel sorting centers. Designed for high-speed, high-volume operations, this automatic industrial door allows smooth movement of parcels, seamless truck access, and reliable performance in fast-paced logistics environments.
Overview: Sectional Doors in Parcel Sorting Centers
Parcel sorting centers require doors that support continuous high-speed operations. The industrial sectional door opens vertically along reinforced tracks, staying parallel to the ceiling. It enables efficient access for forklifts, conveyors, and delivery vehicles while maintaining warehouse safety and workflow efficiency.
Basic Structure & Operating Principle
The door consists of sectional panels, reinforced tracks, torsion springs, and optional electric motor drive. During operation, the industrial lift-up door with tracks moves vertically, offering controlled, reliable motion suitable for high-cycle daily use.
Difference Between Sectional Doors and Other Industrial Doors
Compared to rolling shutters or fabric high-speed doors, steel or aluminum sectional doors provide superior insulation, durability, and heavy-duty performance, making them ideal for parcel sorting warehouses with continuous inbound and outbound flows.
Key Features
Durable Panel Construction
High-strength steel or aluminum panels form a heavy duty industrial door, protecting both personnel and cargo in busy sorting centers.
Reinforced Track & Spring System
Industrial-grade tracks and torsion springs ensure smooth operation and long life under high-cycle conditions.
Insulated Panels for Climate Control
Insulated lift-up doors maintain optimal indoor temperature and energy efficiency, especially in climate-sensitive parcel storage zones.
Safety Systems
Equipped with spring break protection, anti-fall devices, and optional sensors to enhance personnel and operational safety.
Product Specifications
| Item |
Description |
| Material |
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral |
0.326 / 0.45mm / 0.55mm / 0.6mm |
| Thickness of Guiding Rail |
Gualvanized Steel,thickness: 2mm |
| Thickness of Panel |
40mm / 50mm |
| Width of Panel |
430mm / 550mm |
| Density of Sandwiches |
48kg/m3 |
| Surface Treatment |
Power coating,thickness of coating:30um |
| Heat Preservation |
4.5W/m.h |
| Wind Resistance |
Beaufort scale 11, 28m/s |
| Noise Level: |
≤60db |
| Sound Insulation Level |
24 Db |
| Fire Retardation: |
Class A |
| Speed |
0.2-0.4m / s |
| Max Dimension |
12m * 8m |
| Sealing Performance |
EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord |
Flexible ,3.8mm |
| Power Supply |
380V 50Hz / 220V 50Hz |
| Service Life |
10 years |
| Emergency Operation |
Manual Hoist Chain to open the door in case of power off |
| Balance System |
a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor |
| Safety |
Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item |
Window,pedestrian door |
Installation method
Operation & Control Options
-
Manual Operation for low-frequency or backup bays.
-
Electric Motor Drive with push-button control for regular operation.
-
Remote Control & Automation Integration for fast parcel processing workflows and dock automation.
Door Panel & Customization Options
-
Single-Skin vs Insulated Panels depending on storage and energy requirements.
-
Vision Panels & Pedestrian Doors for visibility and safe personnel movement.
-
Custom Sizes, Colors & Finishes tailored to sorting center layouts.

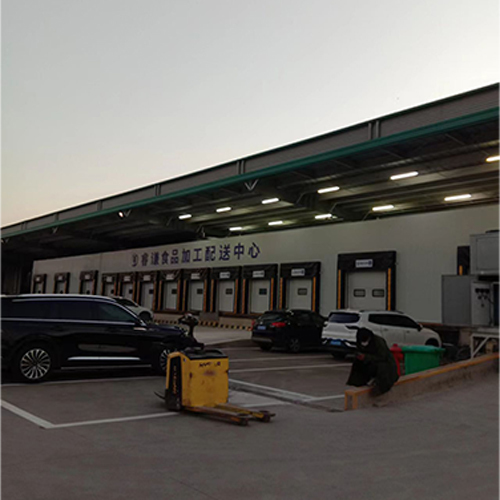

Application Scenarios in Parcel Sorting Centers
-
Inbound & Outbound Truck Loading – Efficient parcel transfer between trucks.
-
Conveyor & Sorting Areas – Smooth integration with automated sorting systems.
-
High-Volume Pallet Handling – Supports forklifts and pallet jacks in fast-flowing operations.
-
Temperature-Controlled Sorting Zones – Maintains stable conditions for sensitive packages.
-
Multi-Client Logistics Hubs – Flexible door solutions for handling multiple shippers simultaneously.
Frequently Asked Questions (FAQ)
Q1: Can these doors handle continuous high-volume parcel operations?
Yes, designed for parcel sorting centers with rapid loading/unloading cycles.
Q2: Are insulated doors available for temperature-sensitive packages?
Yes, insulated options help maintain energy efficiency and optimal storage conditions.
Q3: Can doors be customized for various dock sizes and sorting layouts?
Yes, size, panels, and operation modes can be fully customized.
Q4: Are remote control and automation systems supported?
Yes, doors integrate with automation, remote control, and push-button systems for efficient parcel handling.
Get a Quote
We provide project consultation, OEM solutions, and bulk order options for industrial sectional overhead doors in parcel sorting facilities.
